Brackets

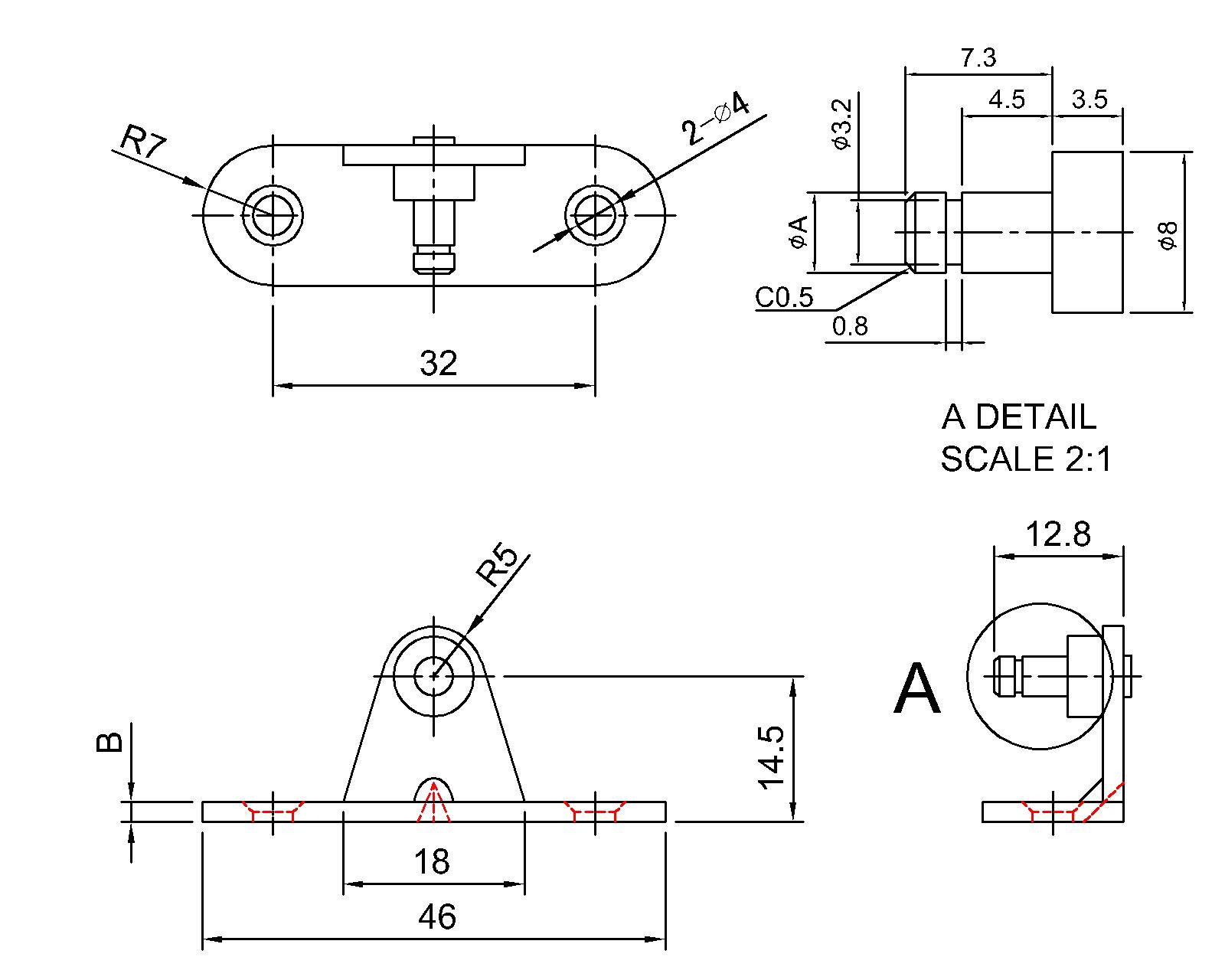

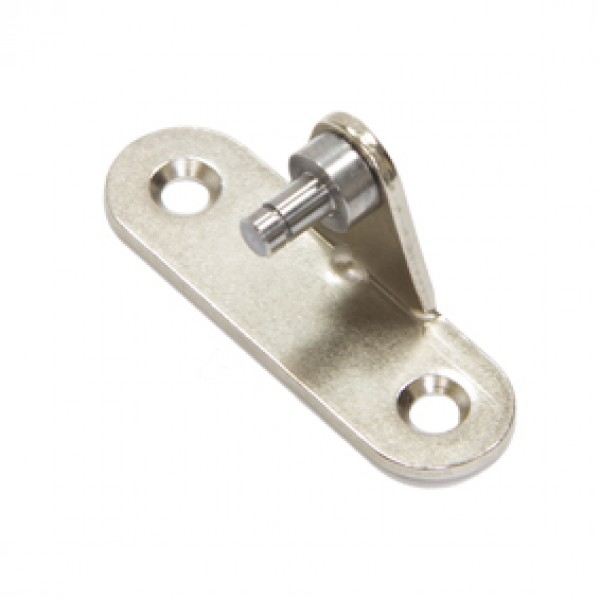

BKT-06D(Bolt 4mm) (Thickness 2mm)
BKT-06D(Bolt 4mm) (Thickness 2mm)
Continue to buy
Inquiry immediately
Product Details
Unit:mm
Model No.
Bolt or Ball
( ∅A )
Thickness
( B )
Bolt or Ball Material
Plate Material
Surface Treatment
Weight (g)
BKT-06D NICKEL
4
2
12L14
P-O
Nickel Plated
BKTS-06D SUS304
SUS303
SUS304
Vibratory Grinding
