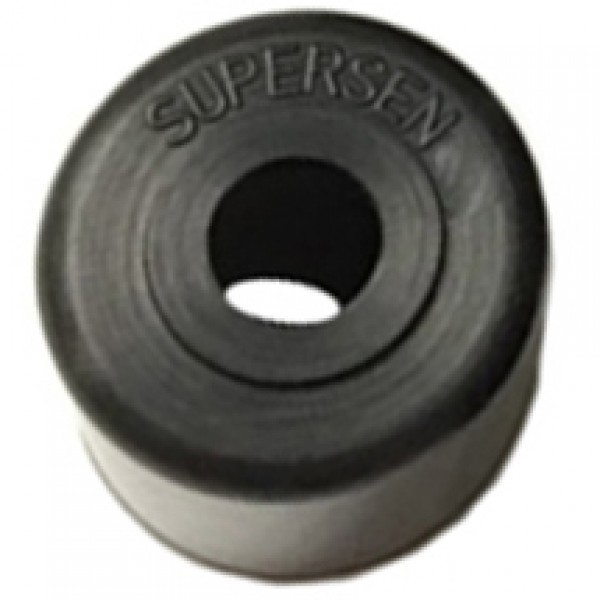

Supersen has developed the 0412 gas spring rubber anti-dust cover model on February 10, 2020. This new gas spring rubber anti-dust cover features on the single trench but double-contact surfaces design.It has significant anti-dust and oil removal effect.

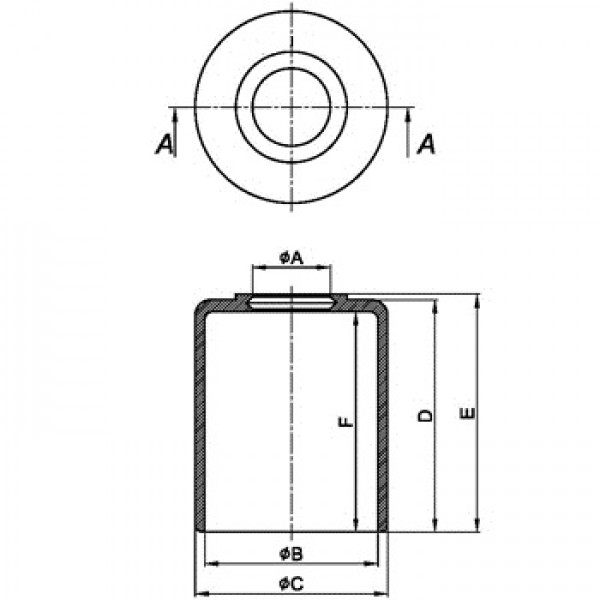

Unit:mm
| Model No. |
ØA |
ØB |
ØC |
D |
E |
F |
Piston Rod Dia |
Tube Dia |
Material |
| RB-0412-15 |
3.8 |
11.8 |
14.2 |
14.3 |
15 |
12.8 |
4 mm |
12 mm |
Rubber |
