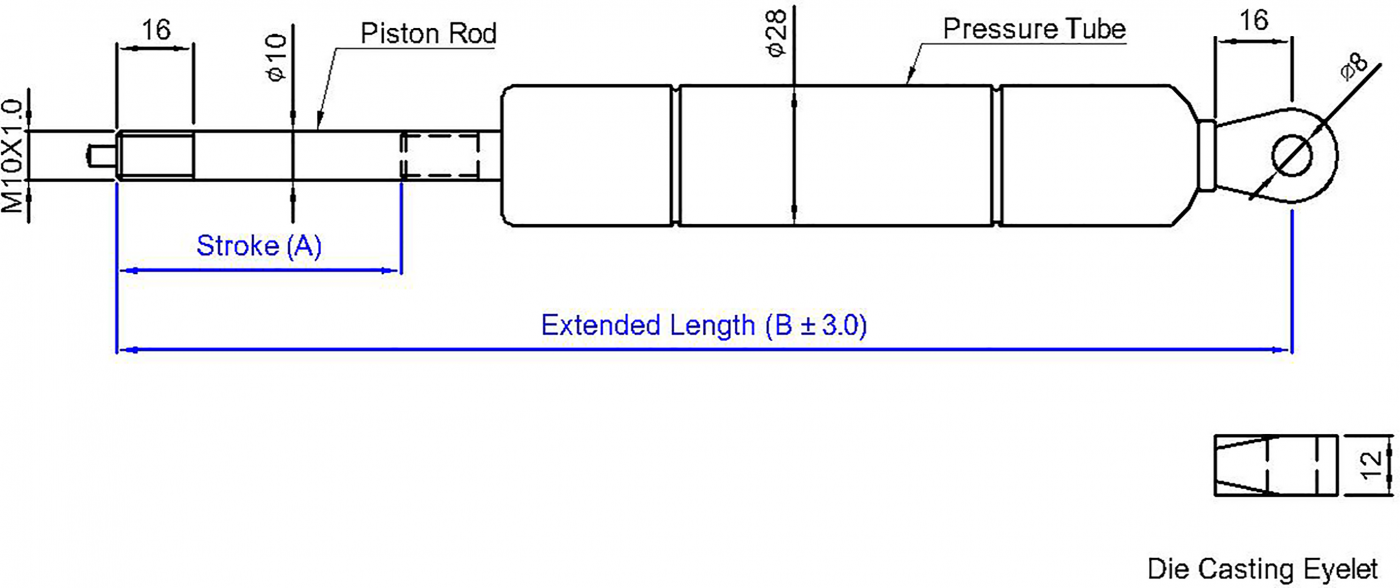

Unit： mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. |
Stroke (A) |
Extended Length (B) |
FZ (N) |
FD (N) |
Force F1 (N) |
Weight (g) |
Remark |
| BOLT-956-M10D9-150N |
400 |
956 |
480 |
860 |
150N |
|
|
| BOLT-1056-M10D9-150N |
450 |
1056 |
480 |
860 |
150N |
|
|

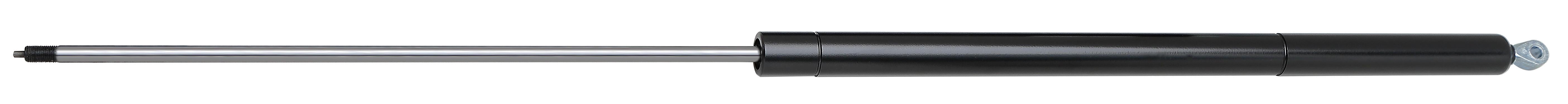

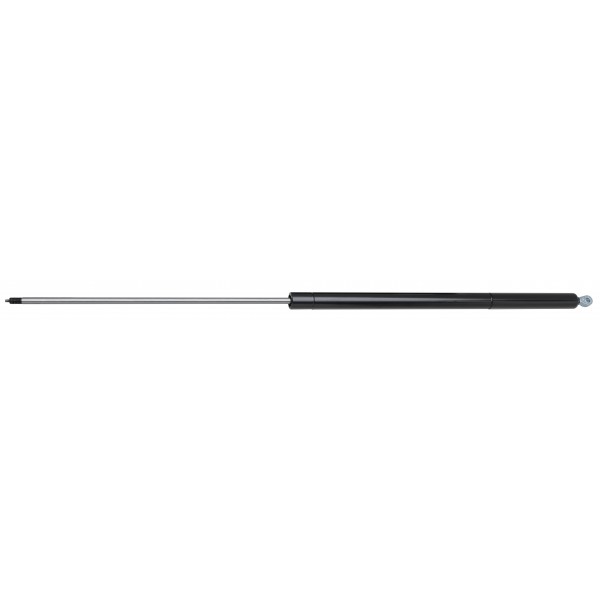

SUPERSEN Lock Type is high quality, high stability. OEM by STABILUS Germany.
The BLOC-O-LIFT T gas spring is used primarily for the convenient adjustment of table heights.
The very flat characteristic curve provides virtually even force assist over the entire stroke.
This makes it wasy to adjust the table top,regardlwss of its weight,without the table losing stability or strength.
This gas spring can be installed in any orientation. The lock can be released optionaly byhand or foot lever allowing the table height to be adjuted fast and easily
Advantages
Fast and easy adjustment due to low compression damping and even force distribution over the entire stroke.
Mounting in any orientation possible.
Table is locked rigidly in any position.
Application
Pub tables, Desks,Speaker pulpits
Nightstands
Height-adjustable kitchen counters.
