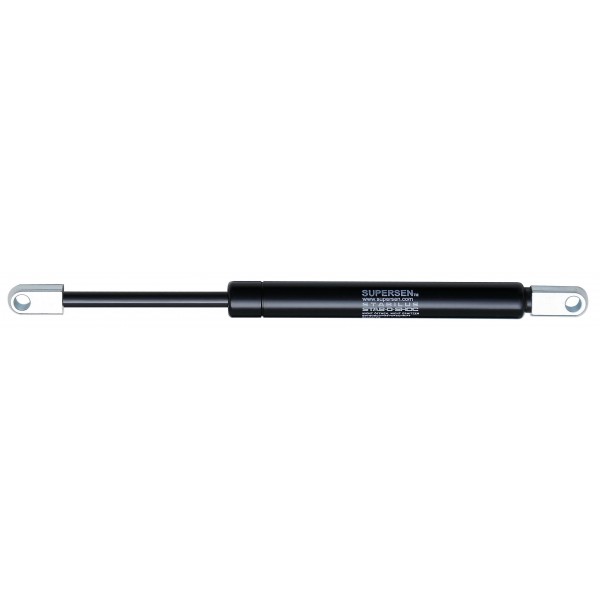

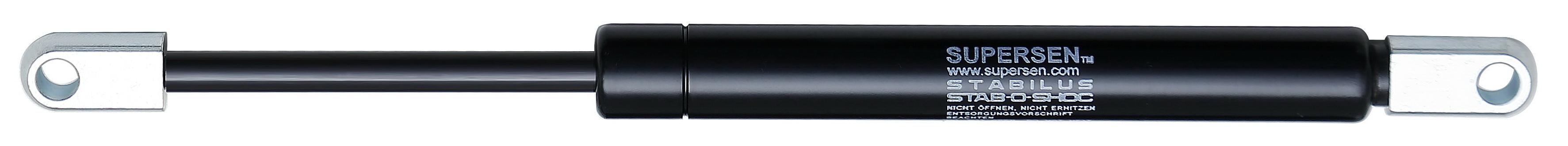

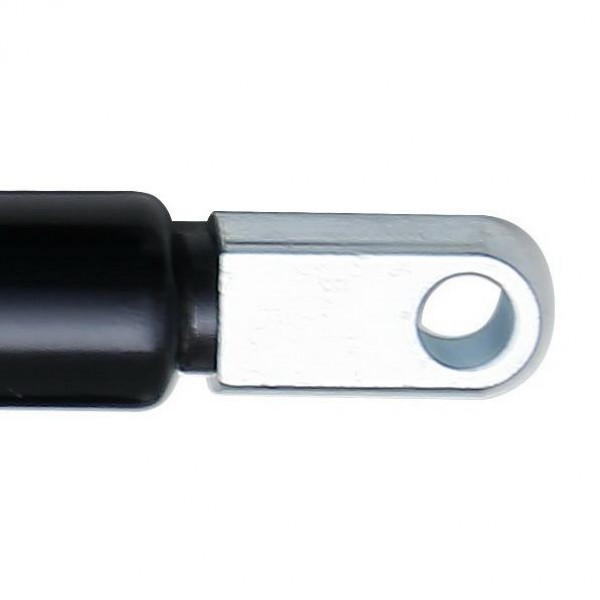

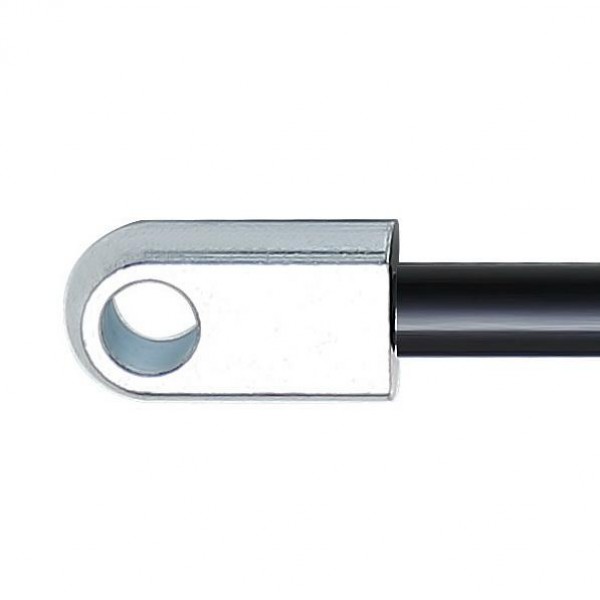

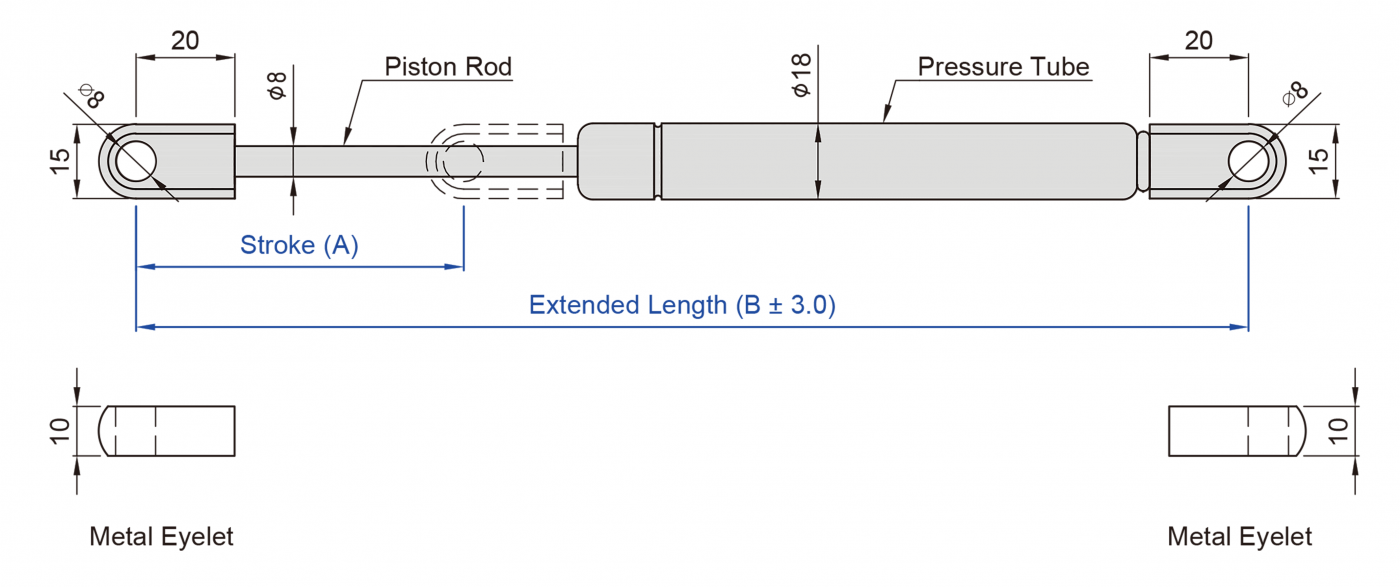

Unit:mm
9.8 Ncwton(N) = 1kg = 2.2LBS
| Model No. |
1)
Stroke (A) |
2)
Stroke (A*) |
Extended
Length (B) |
3)4)
Tension Force FZ (N) |
3)5)
Compression FD (N) |
Weight (g) |
Remark |
| HD18E-271-L508-1000N |
80 |
80 |
271 |
1000±100 |
<50 |
|
|
| HD18E-271-L508-1590N |
1590±330 |
<50 |
|
|
| HD18E-271-L508-1870N |
1870±580 |
<50 |
|
|
| HD18E-360-L508-1040N |
120 |
120 |
360 |
1040±100 |
<50 |
|
|
| HD18E-360-L508-1600N |
1600±280 |
<50 |
|
|
| HD18E-360-L508-2200N |
2200±450 |
<50 |
|
|
| HD18E-433-L508-870N |
148 |
148 |
433 |
870±180 |
<50 |
|
Test Speed: 50mm/s |
| HD18E-538-L508-1000N |
200 |
200 |
538 |
1000±100 |
<50 |
|
|
| HD18E-538-L508-1610N |
1610±270 |
<50 |
|
|
| HD18E-538-L508-2100N |
2100±830 |
<50 |
|
|
*The max force tolerance is ±30% for the HD18 series Oil Damper-SOS
1) Hydrauilc stroke
2) Mechanical stroke
3) Test speed 100 mm/s
4) Piston rod down, piston flow only in oil = hydraulic stroke, A
5) Piston rod up, maximum possible stroke in oil and air chamer = mechanical stroke,A*
FZ : Blocking force in traction direction (N)
FD : Blocking force in compression direction (N)
