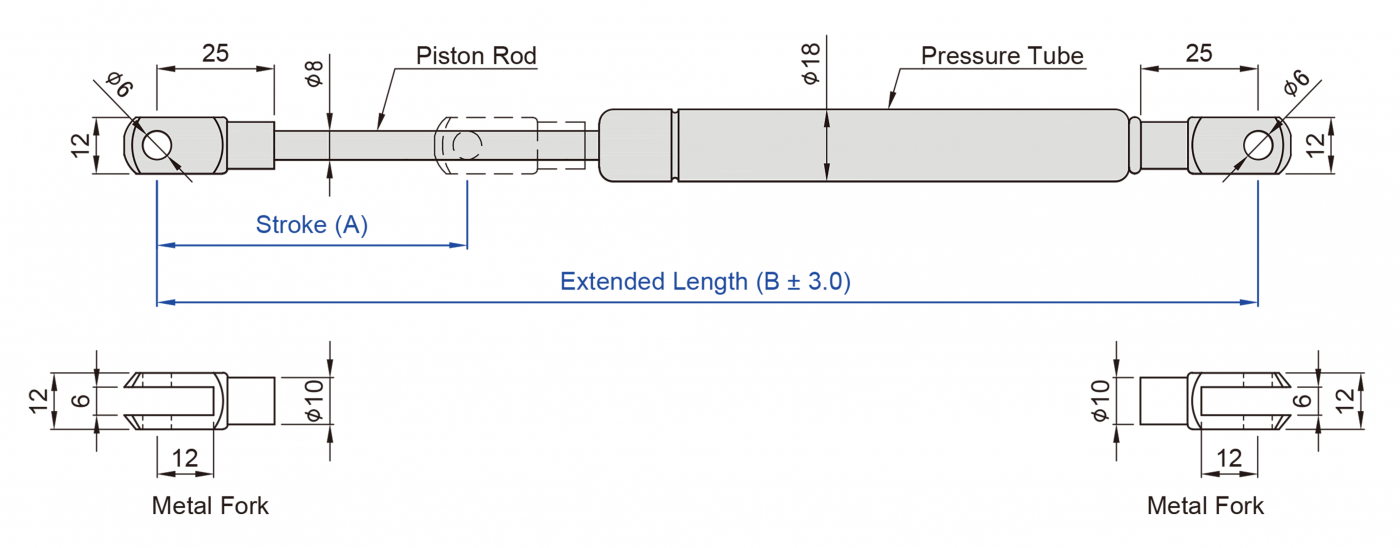

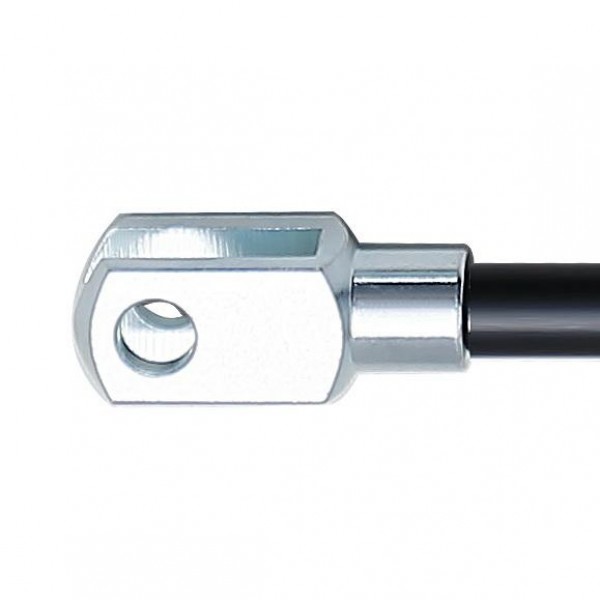

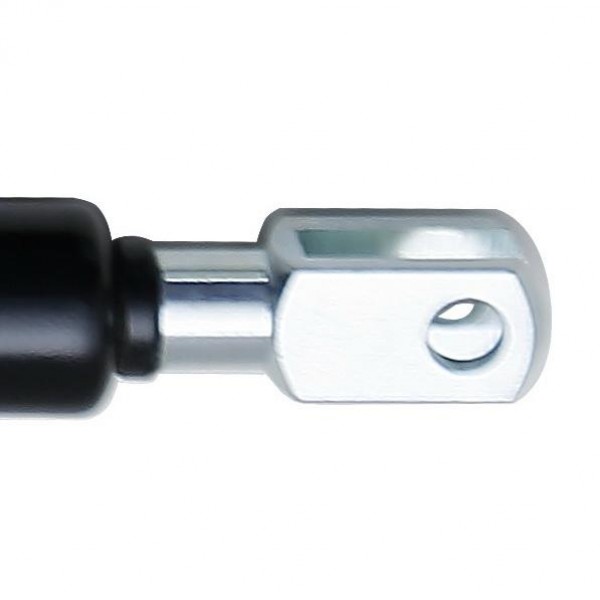

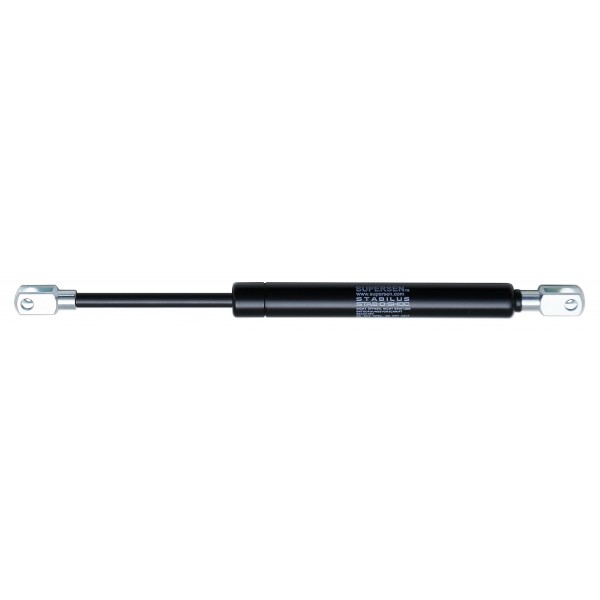

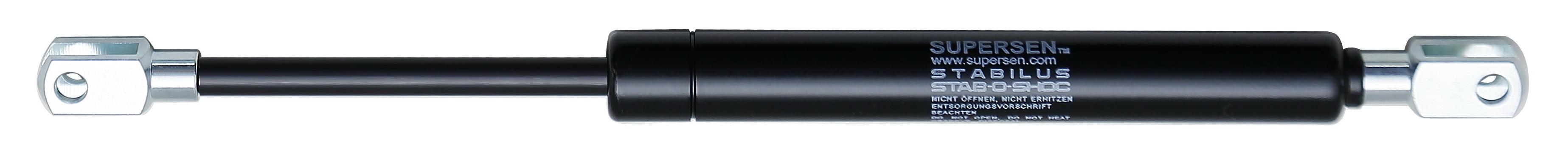

Unit: mm
9.8 Newton(N) = 1kg = 2.2LBS
| Model No. |
1)
Stroke (A) |
2)
Stroke (A*) |
Extended
Length (B) |
3)4)
Tension Force FZ (N) |
3)5)
Compression FD (N) |
Weight (g) |
Remark |
| HD18C-358-U5-500N |
80 |
130 |
358 |
<50 |
500±150 |
|
|
| HD18C-358-U5-2050N |
<50 |
2050±250 |
|
|
| HD18C-358-U5-3300N |
<50 |
3300±850 |
|
|
| HD18C-476-U5-490N |
125 |
190 |
476 |
<50 |
490±140 |
|
|
| HD18C-476-U5-2080N |
<50 |
2080±280 |
|
|
| HD18C-476-U5-3150N |
<50 |
3150±650 |
|
|
| HD18C-710-U5-480N |
205 |
310 |
710 |
<50 |
480±220 |
|
|
| HD18C-710-U5-1000N |
<50 |
1000±190 |
|
|
| HD18C-710-U5-2000N |
<50 |
2000±200 |
|
|
*The max force tolerance is ±30% for the HD18 series Oil Damper-SOS
1) Hydrauilc stroke
2) Mechanical stroke
3) Test speed 100 mm/s
4) Piston rod down, piston flow only in oil = hydraulic stroke, A
5) Piston rod up, maximum possible stroke in oil and air chamer = mechanical stroke,A*
FZ : Blocking force in traction direction (N)
FD : Blocking force in compression direction (N)
