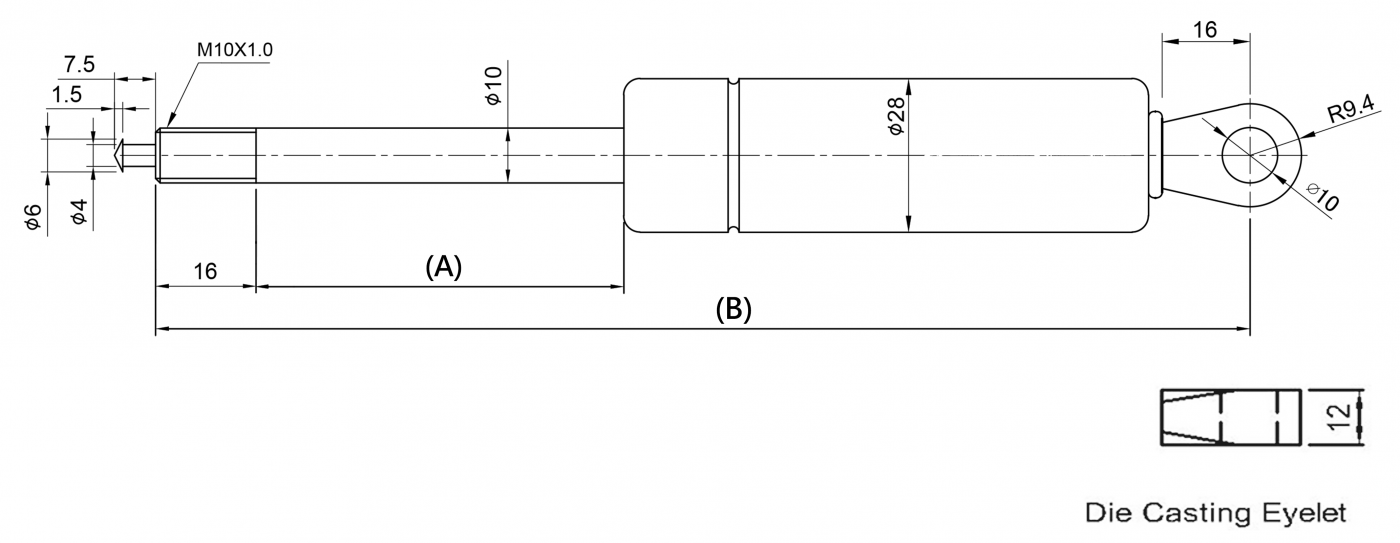

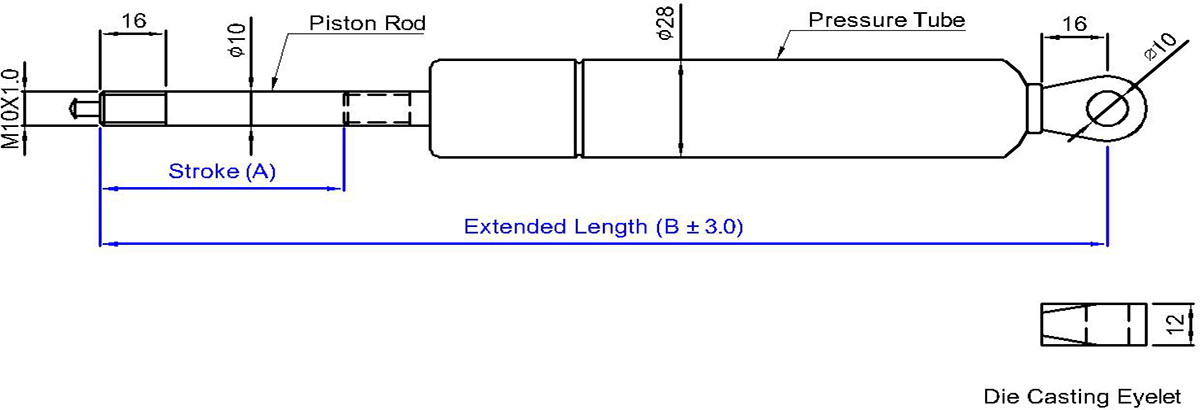

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS

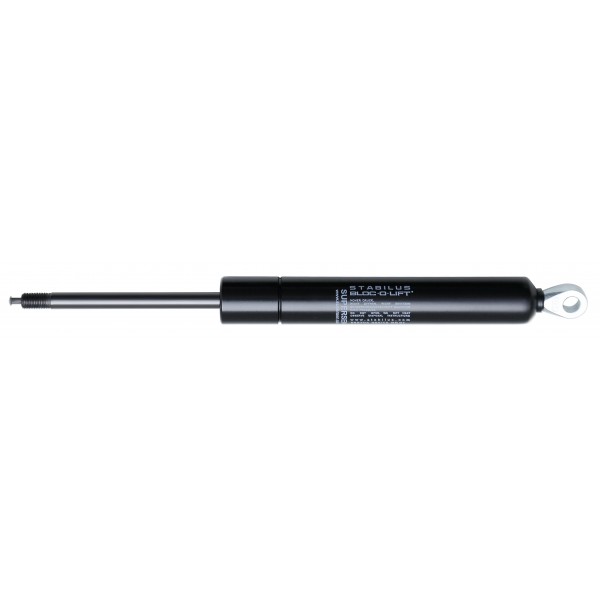

 Since oil cannot be compressed, gravity will ensure the usual safe holding force. Consequently, the additional piston as a separating element between gas and oil will not be necessary.

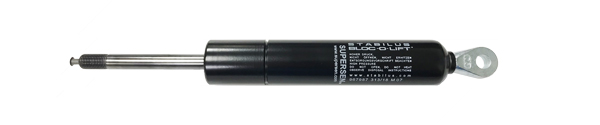

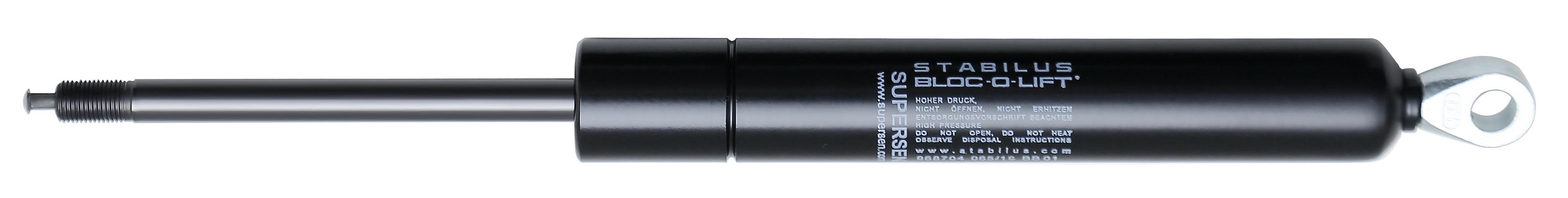

In this version, the entire working stroke of the piston is located in the oil layer, allowing the required rigid locking of the BLOC-O-LIFT in any position.

For locking in the compression direction, the BLOC-O-LIFT must be installed with the piston rod pointing up. In the rare cases where locking in the extension direction is desired, a BLOC-O-LIFT version with the piston rod pointing down should be mounted.

Advantages

· Cost-efficient variant with very high rigid oil locking force.

· Variable rigid locking and optimized weight compensation during lifting, lowering, opening, and closing.
