We hope to help you choose the right SUPERSEN Gas Spring for your application, you can use the following approximation formula and application sketch.
- ● The Stroke A (mm)
- ● The Extended Length B (mm)
- ● The Extension Force F1 (N)
- ● And The Type Of Connection

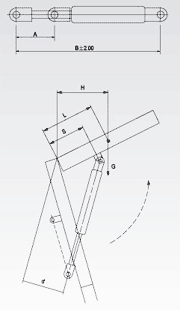

G=Weight Of Flap In KG
L=Distance From Center Of Gravity To Pivot Point In mm
d=Effective Lever Arm Of Gas Spring In mm, Flap Open.
13=Conversion Factor KG-N+Safety Margin
S=Flap Attachment (Suggest Approx. 2/3 L)
n=Number Of Gas Spring (Standard：n=2 Pcs)
H=Effective Leverarm Of Gravity In mm, Flap Open. Example：
G=30KG, H=400mm, d=200mm, n=2
- ● Install without twisting.
- ● Pivot only at the connection provided.
- ● Avoid lateral forces.
- ● It is recommended to install the unit with the piston rod facing down, if possible.
- ● Protect piston rod from dirt, paint and damage.
- ● Do not perform any metal-cutting work on the unit.
