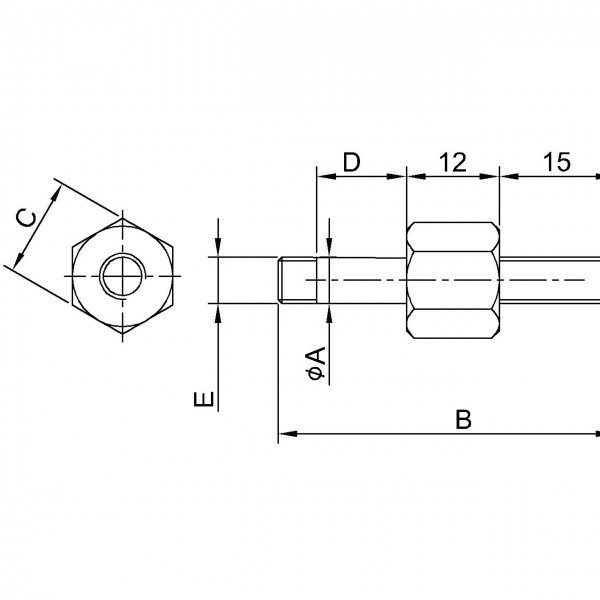

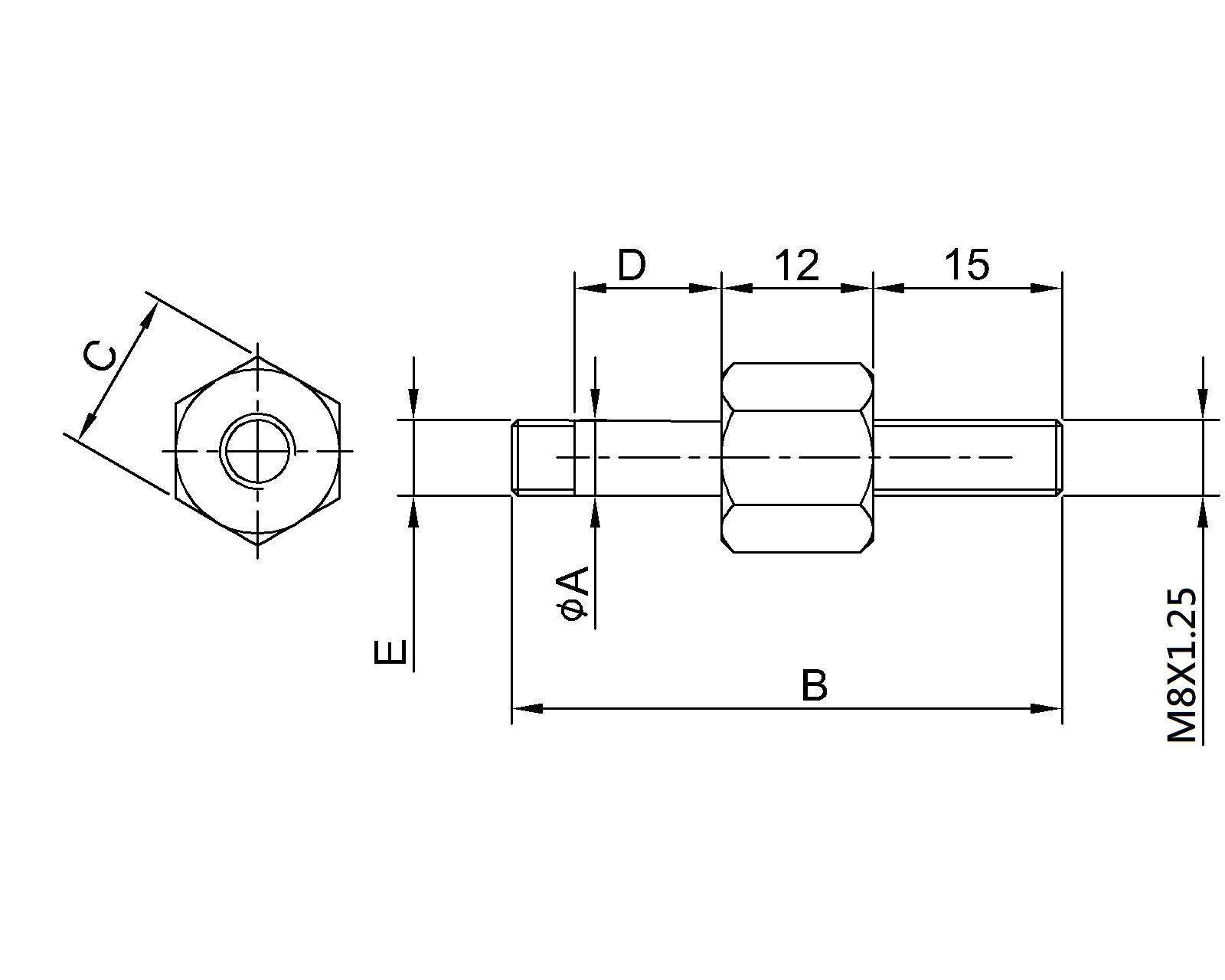

Unit:mm
| Model No. |
BOLT Dia( A ) |
B |
C |
D |
Thread ( E ) |
Material |
Surface Treatment |
Weight (g) |
| SWS6411A |
∅8 |
39.5 |
15.8 |
5.5 |
M8X1.25 |
SUS303 |
Vibratory Grinding |
|
| SWS6411B |
44.5 |
15.8 |
10.5 |
|
| SWS6411C |
∅10 |
41.5 |
15.8 |
5.5 |
M10X.15 |
|
| SWS6411D |
46.5 |
15.8 |
10.5 |
|

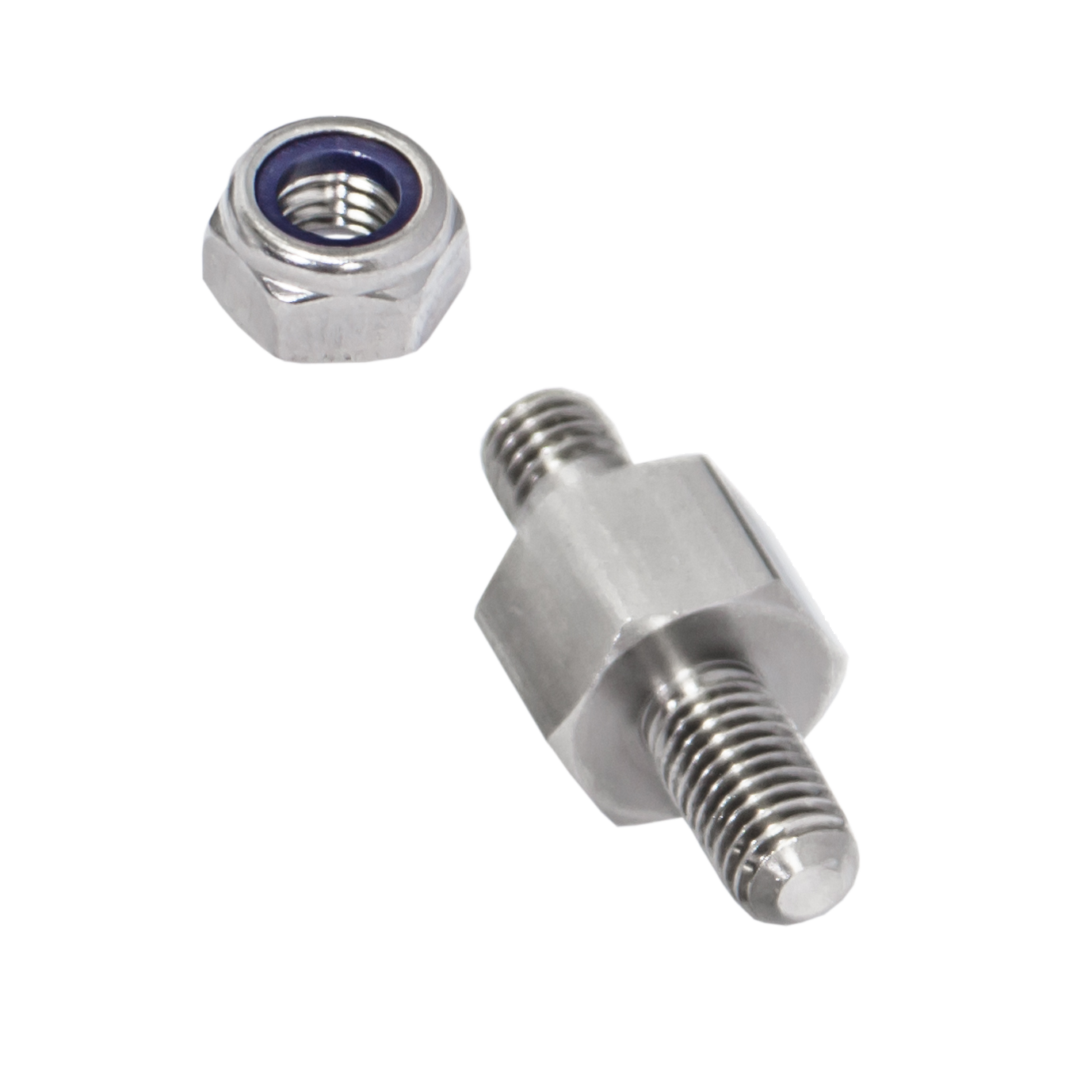

SUPERSEN have developed new GAS SPRING connecting part and the part No. is SW6411X.
The material of SW6411X is stainless, and it principally collocates with SUPERSEN stainless steel gas spring; they used in humid environments, particularly in yacht, ship-building inustry, outdoor building and so on.
Inquiry are welcome.
