suitable for thick 10~12mm and dia. 8mm gas spring connection

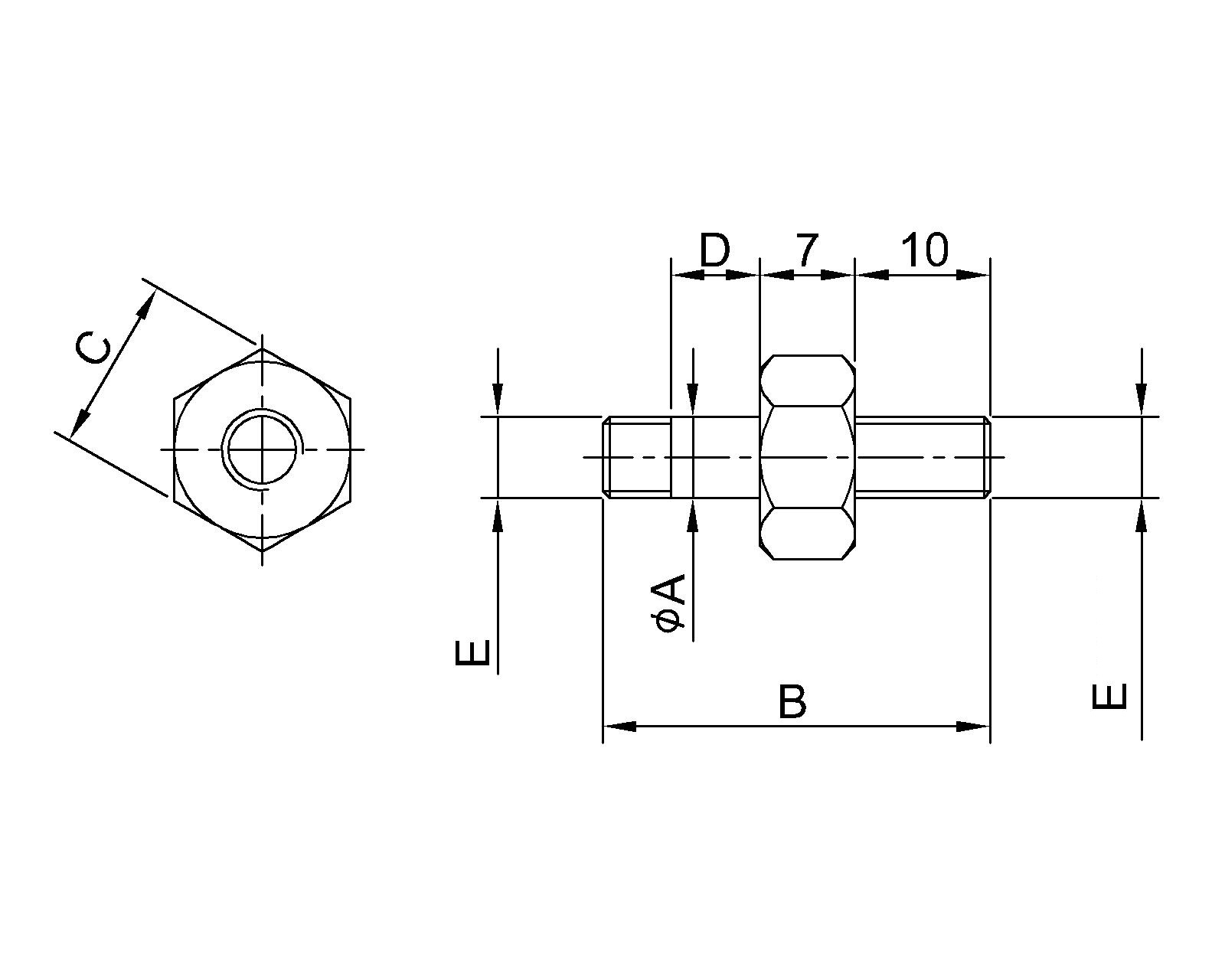

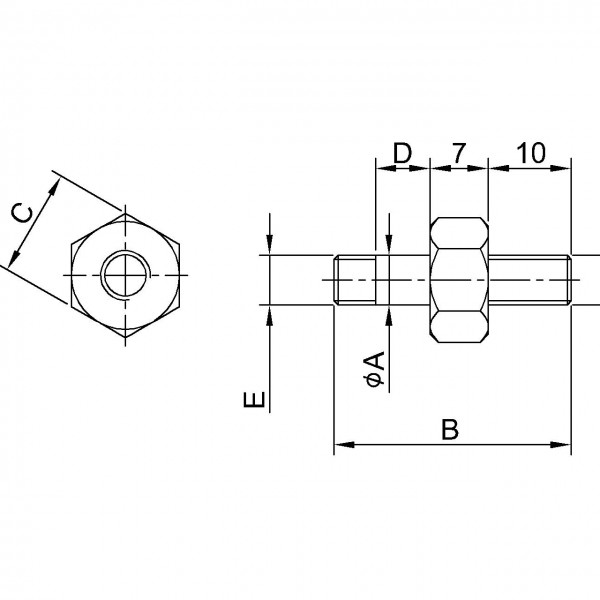

Unit:mm
| Model No. |
BOLT Dia( A ) |
B |
C |
D |
Thread ( E ) |
Material |
Surface Treatment |
Weight (g) |
| SWS6412A-L1 |
∅6 |
28.6 |
13 |
6.6 |
M6X1.0 |
SUS303 |
Vibratory Grinding |
|
| SWS6412B |
∅8 |
29.5 |
13 |
5.5 |
M8X1.25 |
|
| SWS6412C |
34.5 |
13 |
10.5 |
|

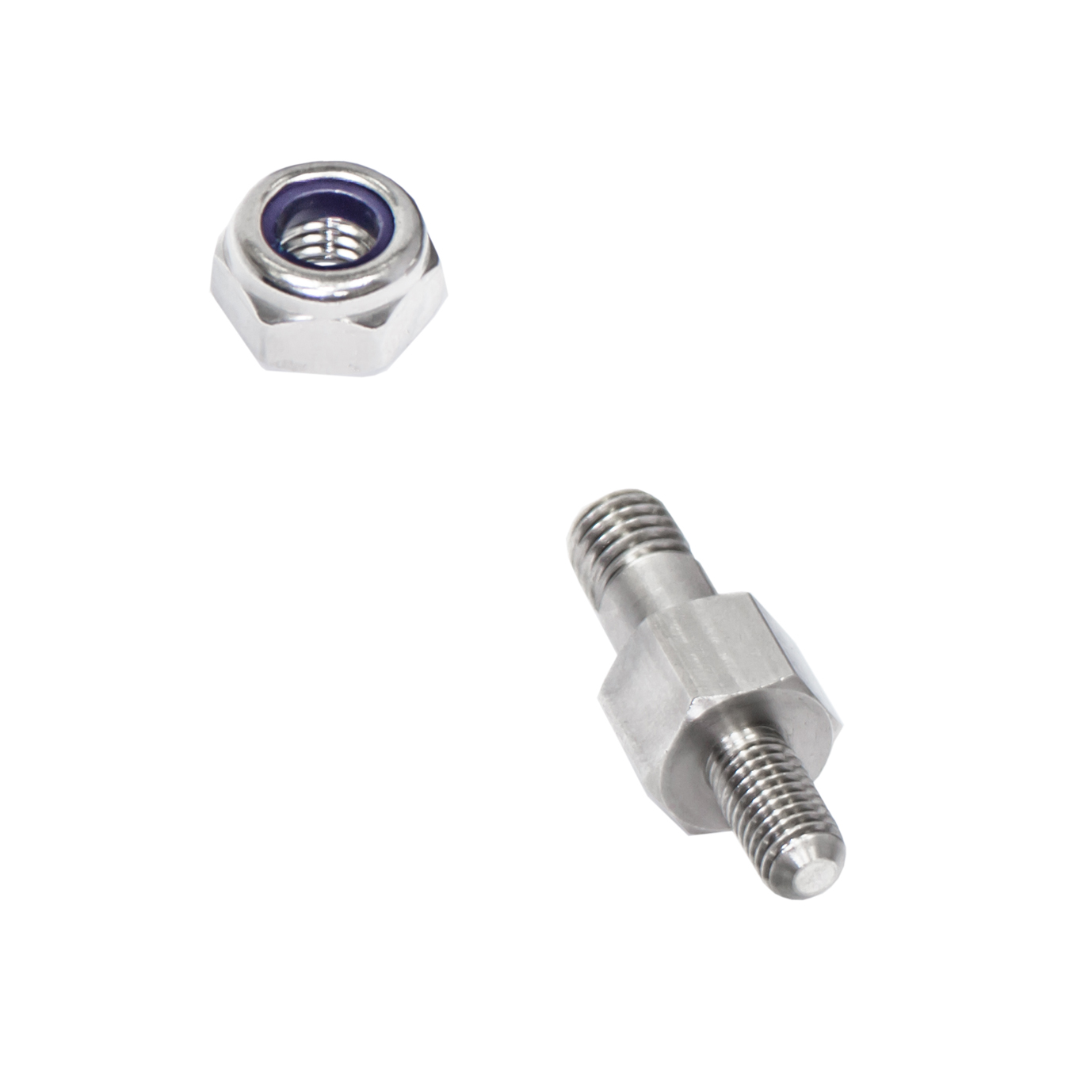

SUPERSEN have developed new GAS SPRING connecting part and the part No. is SW6412X.
The material of SW6412X is stainless, and it principally collocates with SUPERSEN stainless steel gas spring; they used in humid environments, particularly in yacht, ship-building inustry, outdoor building and so on.
Inquiry are welcome.
