Unit:mm
| Part No. |

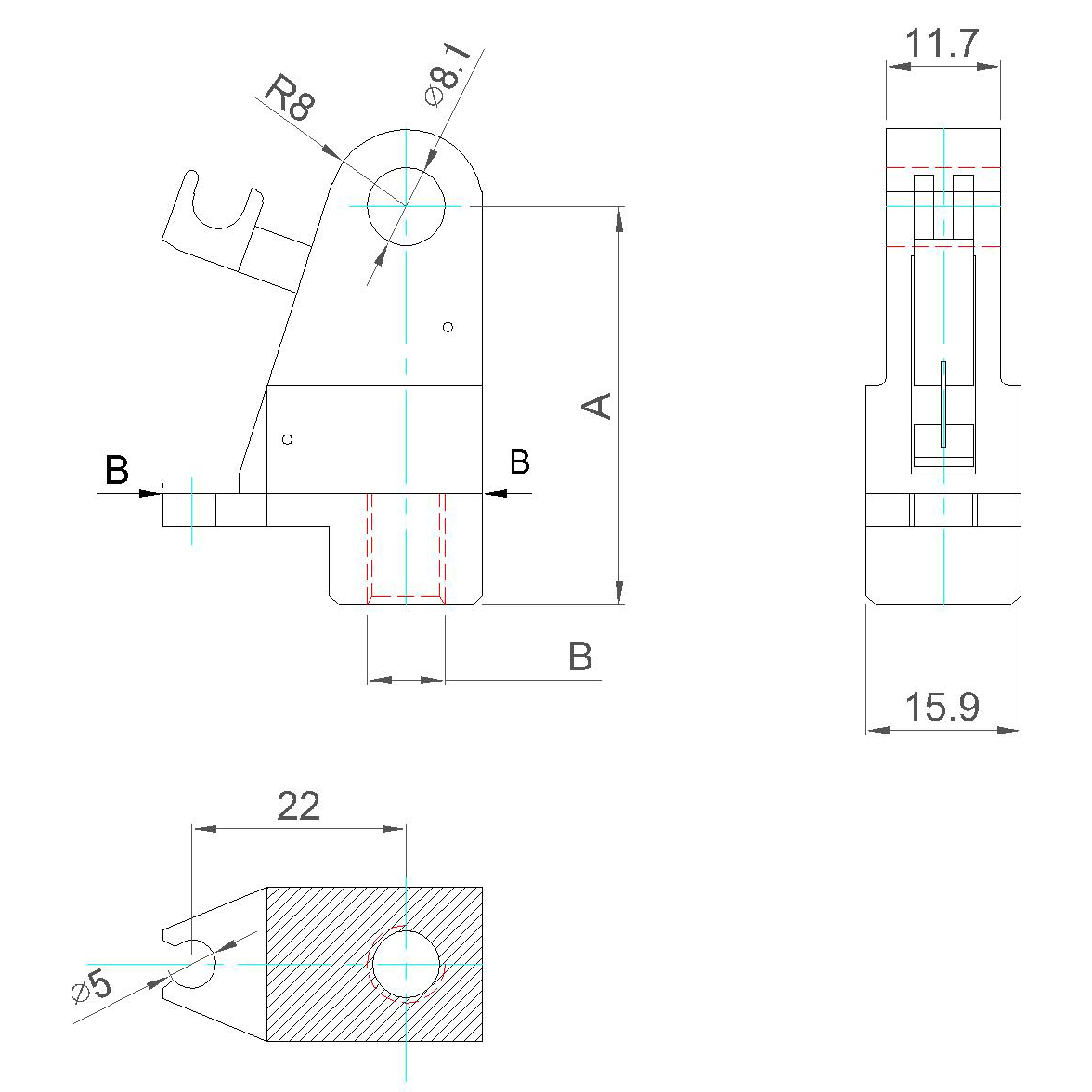

Hole Center To End
(A) |
Thread
(B) |
Hole Dia. |
Material |
| STDE-ACC-BOL-075291 |
40.9 |
M8X1.0 |
Ø8.1 |
Alloy Die Casting |
| STDE-ACC-BOL-006837 |
40.9 |
M10X1.0 |
Ø8.1 |
Alloy Die Casting |
1. PN: STDE-ACC-BOL-075291 Suit for : BOL OBT gas spring series.
2. PN: STDE-ACC-BOL-006837 Suit for : BOL gas spring series , BOL-T gas spring series.
3. The joint can use a pressure bar with a maximum pressure of 500N.
4. It can be used with various Push-buttons conreollers to become a complete control mechanism, which is convenient for customers to design and use.
