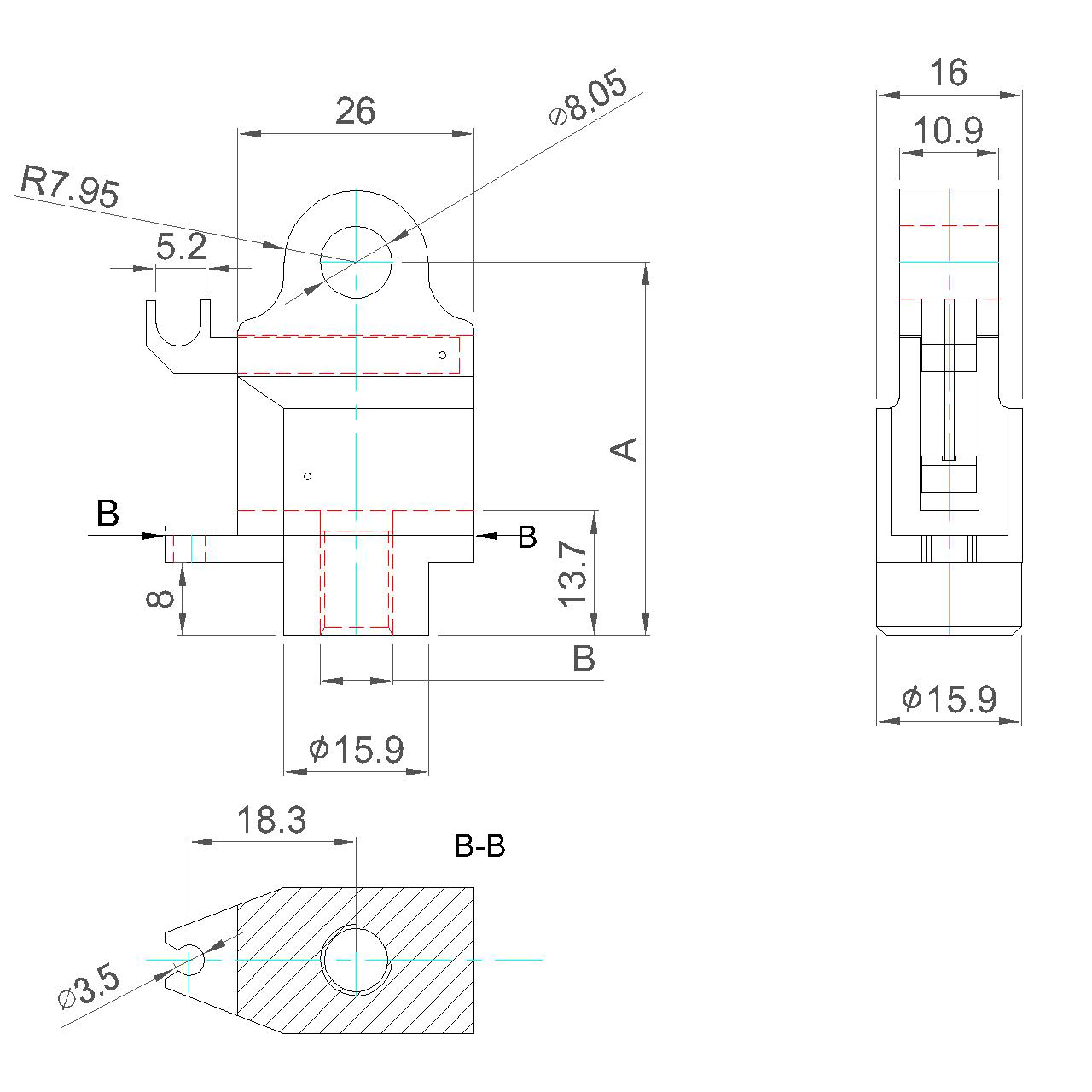

Unit:mm
| Part No. |
Hole Center To End
(A) |
Thread
(B) |
Hole Dia. |
Material |
| STDE-ACC-BOL-074574 |
41 |
M8X1.0 |
Ø8 |
Alloy Die Casting |
| STDE-ACC-BOL-112485 |
41 |
M10X1.0 |
Ø8 |
Alloy Die Casting |
1. PN: STDE-ACC-BOL-074574 Suit for : BOLOBT Gas spring series.
2. PN: STDE-ACC-BOL-112485 Suit for : BOL Gas spring series , BOL-T Gas spring series.
3. The joint can use a pressure bar with a maximum pressure of 1000N.
4. It can be used with various Push-buttons controllers to become a complete control mechanism, which is convenient for customers to design and use.
